Customized Glass Fiber Unwinding And Slitting Machine For Filter Element Pleating Lines

Ask Lasest Price
Brand Name :	TONGCHEN
Model Number :	TCSJ
Price :	US$2000~8000/set
Payment Terms :	T/T
Supply Ability :	30 Set/Sets per Day
Delivery Time :	15~45 work days

Add to Cart

Product Details
Company Profile

Customized Glass Fiber Unwinding And Slitting Machine For Filter Element Pleating Lines

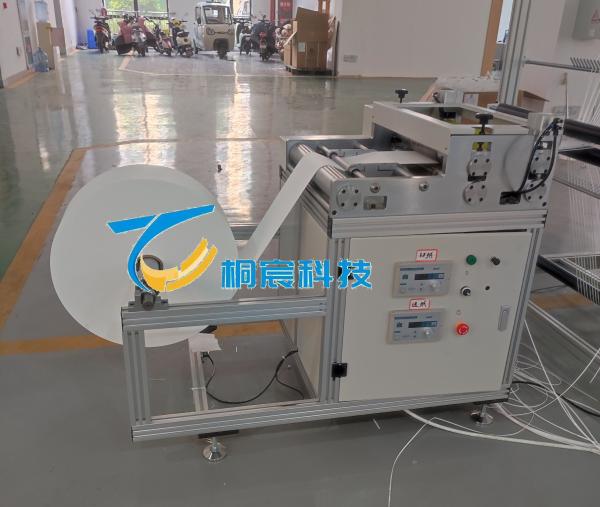

Glass fiber unwinding and slitting machine for filter element pleating lines

Customized products are available in various types. Each product has its own price. For detailed product information and to inquire about the price, please contact the customer service. The more quantity, the better price.

Products Description

Customized Glass Fiber Unwinding And Slitting Machine For Filter Element Pleating Lines

This equipment is the front-end core device of the filter glass fiber gluing pleated paper production line without partitions, integrating automatic feeding, tension control and high-precision slitting functions. Designed specifically for glass fiber filter paper and composite glass fiber materials, through a servo drive system and intelligent deviation correction technology, large rolls of glass fiber materials are slit into small rolls of specified widths, meeting the high-precision requirements of subsequent pleating and gluing processes. The equipment supports fiberglass materials with a thickness of 0.1-1mm. The slitting edges are smooth and free of burrs. It is equipped with a double-station feeding rack to achieve continuous production and is a key pretreatment device for the automated production of high-efficiency filters without separators (HEPA/ULPA).

Product Parameters

Product parameters for reference only, details consult customer service.

Machine Name	Glass fiber unwinding and slitting machine for filter element pleating lines
Applicable materials	Glass fiber filter paper, glass fiber composite paper, high-temperature resistant glass fiber cloth (moisture content ≤0.5%)
Slitting width range	50-850mm (Minimum slitting width 50mm, customizable widening up to 1500mm is supported)
Slitting accuracy	±0.15mm (static) /±0.3mm (dynamic, during high-speed operation)
Maximum load capacity of the discharge rack	500kg (standard single station) /1000kg (optional double station with automatic switching)
Slitting speed	0-180m/min (adjustable, depending on the material thickness. When the glass fiber is 0.5mm, it is recommended to be ≤150m/min)

Company Profile

Bengbu Tongchen Automation Technology Equipment Co., Ltd.

A Leading Innovator in Filter Manufacturing Automation

As a professional developer, designer, and manufacturer of filter production equipment, Bengbu Tongchen is headquartered in Bengbu—known as the "Pearl City," a vital transportation hub, cultural heritage city, and industrial center in China. Specializing in advanced automation solutions, our core portfolio includes:

Paper pleating systems

Rotary machinery

Diesel engine filter production lines

Large air filter manufacturing equipment

Partitioned/partitionless filter production lines for purification industries

High-precision pleating machines

Partitionless glass fiber strip production lines

Driven by technological innovation, we continuously engineer advanced, efficient, and reliable equipment to meet evolving industry demands. Our solutions align with global standards while leading domestic trends, empowering customers in medical, electronics, semiconductor, and industrial sectors to achieve standardized, high-volume production.

Quality and service are the cornerstones of our philosophy. By integrating cutting-edge technology with rigorous quality control, we help clients enhance brand competitiveness worldwide. As your trusted partner in China, Tongchen Technology is committed to delivering tailored mechanical solutions and fostering long-term collaborative growth.

Contact us today to explore how our automation expertise can elevate your filter manufacturing capabilities.

Our Advantages

Integrity & Customer-Centric Approach: Upholding credit priority and customer focus to build long-term trust.
Quality Assurance: Rigorous process control, real-time quality tracking, and rapid objection handling, exceeding domestic standards and aligning with international factory control benchmarks.
Operational Excellence: Punctual delivery and precise understanding of customer needs ensure seamless collaboration.
Partnership Vision: Committed to sincere cooperation and mutual growth, consistently meeting and exceeding product quality expectations.
